日立ABB IGBT模块

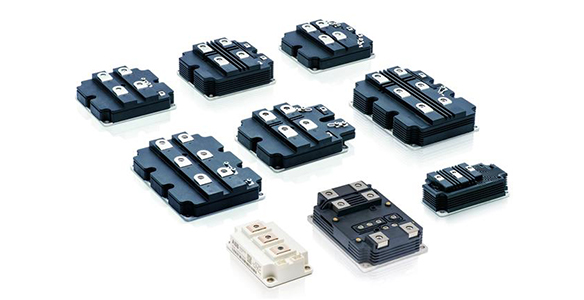

日立ABB的 IGBT功率模块为电压从1700伏特至6500伏特的单一IGBT，双/桥臂式IGBT，斩波和双二极管模块。大功率的HiPak IGBT模块具备软开关低损耗和高极限较宽的SOA两大特点。最新推出的62Pak快速转换IGBT中压功率模块，具有最低的开关损耗，在175°C下全方SOA运行，标准封装要求并容易替换。
| 型号 | 电压 VCES (V) | 电流 IC (A) | 类型 | 包装 | Plecs 模拟 |
| 1.7 kV | |||||
| 5SNG 0150Q170300 | 1700 | 2 x 150 | Phase leg IGBT | 62Pak | XML |
| 5SNG 0200Q170300 | 1700 | 2 x 200 | Phase leg IGBT | 62Pak | XML |
| 5SNG 0300Q170300 | 1700 | 2 x 300 | Phase leg IGBT | 62Pak | XML |
| 5SND 0800M170100 | 1700 | 2 x 800 | Dual IGBT | HiPak | XML |
| 5SNE 0800M170100 | 1700 | 800 | Chopper | HiPak | XML |
| 5SNG 1000X170300 # | 1700 | 2 x 1000 | Phase leg IGBT | LinPak | XML |
| 5SNA 1600N170100 | 1700 | 1600 | Single IGBT | HiPak | XML |
| 5SNA 1800E170100 | 1700 | 1800 | Single IGBT | HiPak | XML |
| 5SNA 2400E170100 * | 1700 | 2400 | Single IGBT | HiPak | |
| 5SNA 2400E170305 | 1700 | 2400 | Single IGBT | HiPak | XML |
| 5SNA 3600E170300 | 1700 | 3600 | Single IGBT | HiPak | XML |
| 5SLA 3600E170300 | 1700 | 3600 | Single diode | HiPak | XML |
| 2.5 kV | |||||
| 5SNA 1500E12365 | 2500 | 1500 | Single IGBT | HiPak | XML |
| 3.3 kV | |||||
| 5SNG 0250P330305 | 3300 | 2 x 250 | Phase leg IGBT | HiPak | XML |
| 5SLG 0500P330300 | 3300 | 2 x 500 | Phase leg diode | HiPak | XML |
| 5SND 0500N330300 | 3300 | 2 x 500 | Dual IGBT | HiPak | XML |
| 3300 | 800 | Chopper | HiPak | XML | |
| 5SNA 0800N330100 | 3300 | 800 | Single IGBT | HiPak | XML |
| 5SLD 1000N330300 | 3300 | 2 x 1000 | Dual diode | HiPak | XML |
| 5SNA 1000N330300 | 3300 | 1000 | Single IGBT | HiPak | XML |
| 3300 | 2 x 1200 | Dual diode | HiPak | XML | |
| 5SNA 1200E330100 | 3300 | 1200 | Single IGBT | HiPak | XML |
| 5SNA 1200G330100 | 3300 | 1200 | Single IGBT | HiPak | XML |
| 5SNA 1500E330305 | 3300 | 1500 | Single IGBT | HiPak | XML |
| 4.5 kV | |||||
| 5SNG 0150P450300 | 4500 | 2 x 150 | Phase leg IGBT | HiPak | XML |
| 5SLG 0600P450300 | 4500 | 2 x 600 | Phase leg diode | HiPak | XML |
| 5SLD 0650J450300 | 4500 | 2 x 650 | Dual diode | HiPak | XML |
| 5SNA 0650J450300 | 4500 | 650 | Single IGBT | HiPak | XML |
| 5SNA 0800J450300 | 4500 | 800 | Single IGBT | HiPak | XML |
| 5SLD 1200J450350 | 4500 | 2 x 1200 | Dual diode | HiPak | XML |
| 5SNA 1200G450300 | 4500 | 1200 | Single IGBT | HiPak | XML |
| 5SNA 1200G450350 | 4500 | 1200 | Single IGBT | HiPak | XML |
| 6.5 kV | |||||
| 5SNA 0400J650100 | 6500 | 400 | Single IGBT | HiPak | XML |
| 5SNA 0500J650300 | 6500 | 500 | Single IGBT | HiPak | XML |
| 5SLD 0600J650100 | 6500 | 2 x 600 | Dual diode | HiPak | XML |
| 5SNA 0600G650100 | 6500 | 600 | Single IGBT | HiPak | XML |
| 5SNA 0750G650300 | 6500 | 750 | Single IGBT | HiPak | XML |
